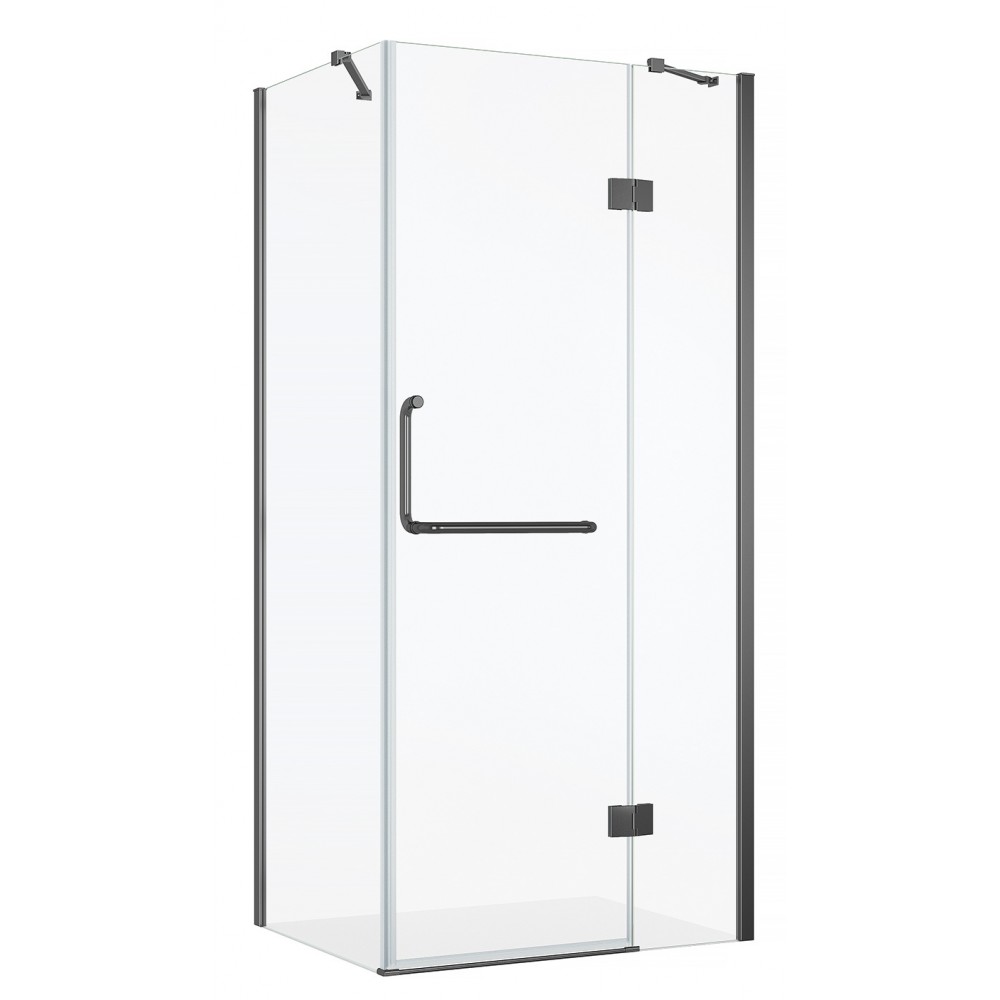

Shower door and side glass, 40 × 32", Black Finish, Nyx collection View larger

Shower door and side glass, 40 × 32", Black Finish, Nyx collection

NYX-BL

New product

Matte black Nyx corner shower. Nominal size 40 × 32 in. Installation adjustment of 37.80 to 38.58 in. across the front and 29.53 to 30.31 in. along the side. Installed height of 80 in. 8 mm tempered glass.

More details

Data sheet

Limited warranty10 YEARS AGAINST ANY MANUFACTURING DEFECT
Product dimensionsNominal size 40 × 32 in. Installation adjustment of 37.80 to 38.58 in. across the front and 29.53 to 30.31 in. along the side. Installed height of 80 in. Dimensions per drawing NYX-DRAW.
Material304 Stainless steel, Tempered glass
ColorBlack
CollectionNyx
FinishClear
ShapeRectangular
Glass thickness8 mm

More info

The Nyx shower is designed to provide a comfortable, sturdy and visually uncluttered shower space. With a nominal size of 40 × 32 in., it is very suitable for bathrooms where you are looking for a compact solution without sacrificing the look.

Its hinged pivot door and tempered glass side panel create an open, modern appearance, while making everyday shower access easier. 8 mm tempered glass provides a sturdy feel, while stainless steel hardware and aluminum profiles contribute to a durable, well-fitted installation.

Thanks to its simple and versatile design, the Nyx collection fits easily into different bathroom styles, whether for a complete renovation or to replace an old shower.

Features

  • Nominal size: 40 × 32 in.
  • Installation adjustment of 37.80 to 38.58 in. across the front and 29.53 to 30.31 in. along the side. Installed height of 80 in. Measure from each finished wall to the enclosure corner, as shown in drawing NYX-DRAW.
  • Hinged pivot door with magnetic closure
  • 8 mm tempered glass
  • Glass side panel included
  • Stainless steel hardware
  • Aluminum profiles
  • Modern, simple and clean design
  • Convenient access for daily use
  • Shower base sold separately
  • 10-year limited warranty against manufacturing defects

Approximate bare glass dimensions

Width × height, rounded to the nearest quarter inch. See the manufacturer’s drawings for exact dimensions.

  • Pivot door, 23 ½ × 79 ¼ in.
  • Fixed front panel, 11 ¾ × 80 in.
  • Fixed side panel, 27 ½ × 80 in.

Download

NYX-MANUAL-FR

Installation Manual for Nyx shower enclosure (French)

Download (1.86M)

NYX-MANUAL-EN

Installation Manual for Nyx shower enclosure (English)

Download (1.8M)

NYX-DRAW

Technical drawing for Nyx shower kit

Download (194.85k)
